# LED settings

The **LED** page sets the LED for each input mode (**2.4G**, **Bluetooth**, **USB**) and each state (**Pairing**, **Waiting**, **Connected**).

1. Select the mode and state tabs.
2. Under **Behaviour**, choose **Default** for the built-in look, or **Override** to choose your own **Colour** and **Pattern**.
3. Set the **Brightness**.
4. Select **Save**.

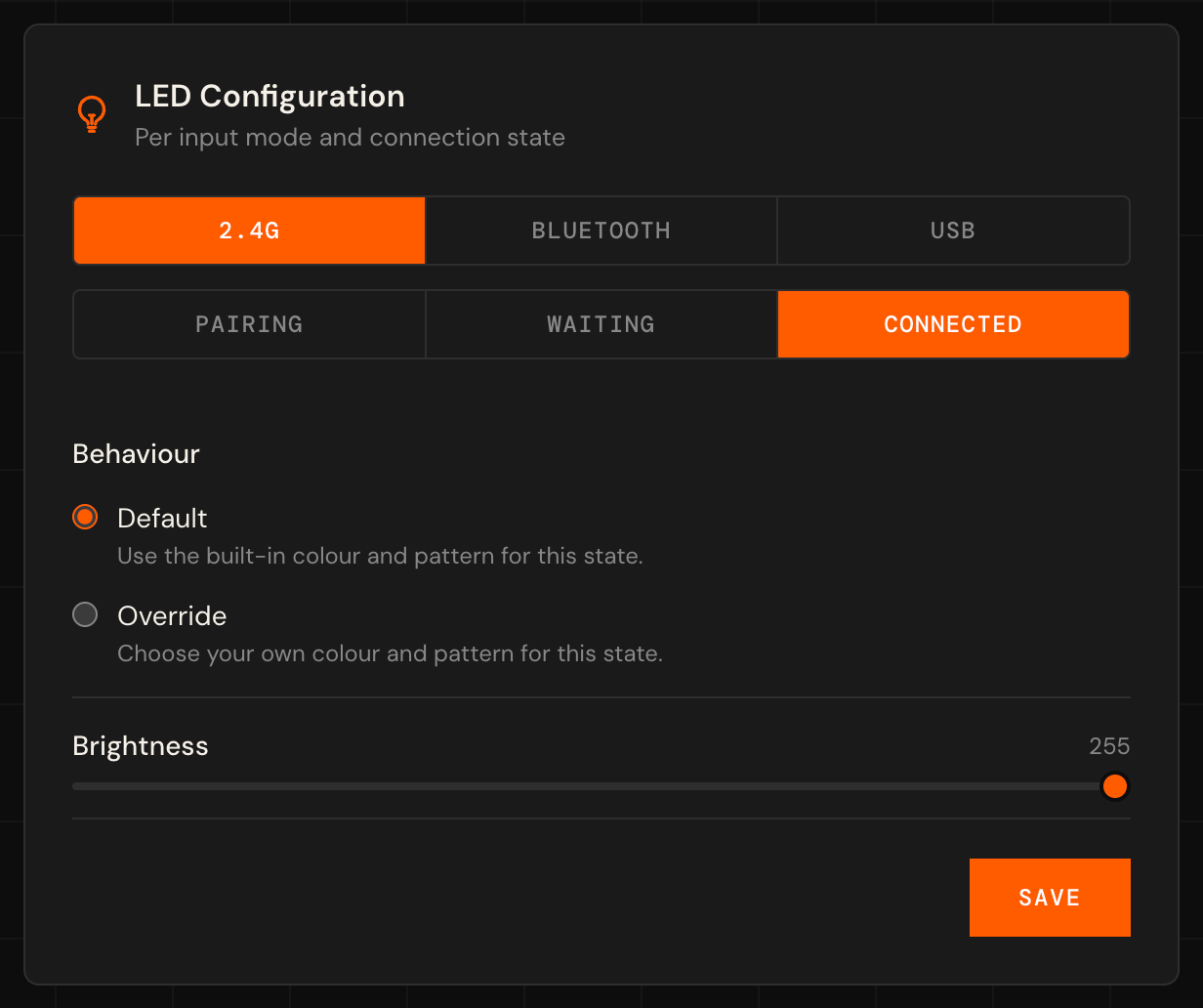

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-8158025fc5be22e39b15785c6a32eeb41efa2a5a%2Fled-page.png?alt=media" alt="LED page, 2.4G Connected, Default behaviour" width="616"><figcaption><p>Default</p></figcaption></figure>

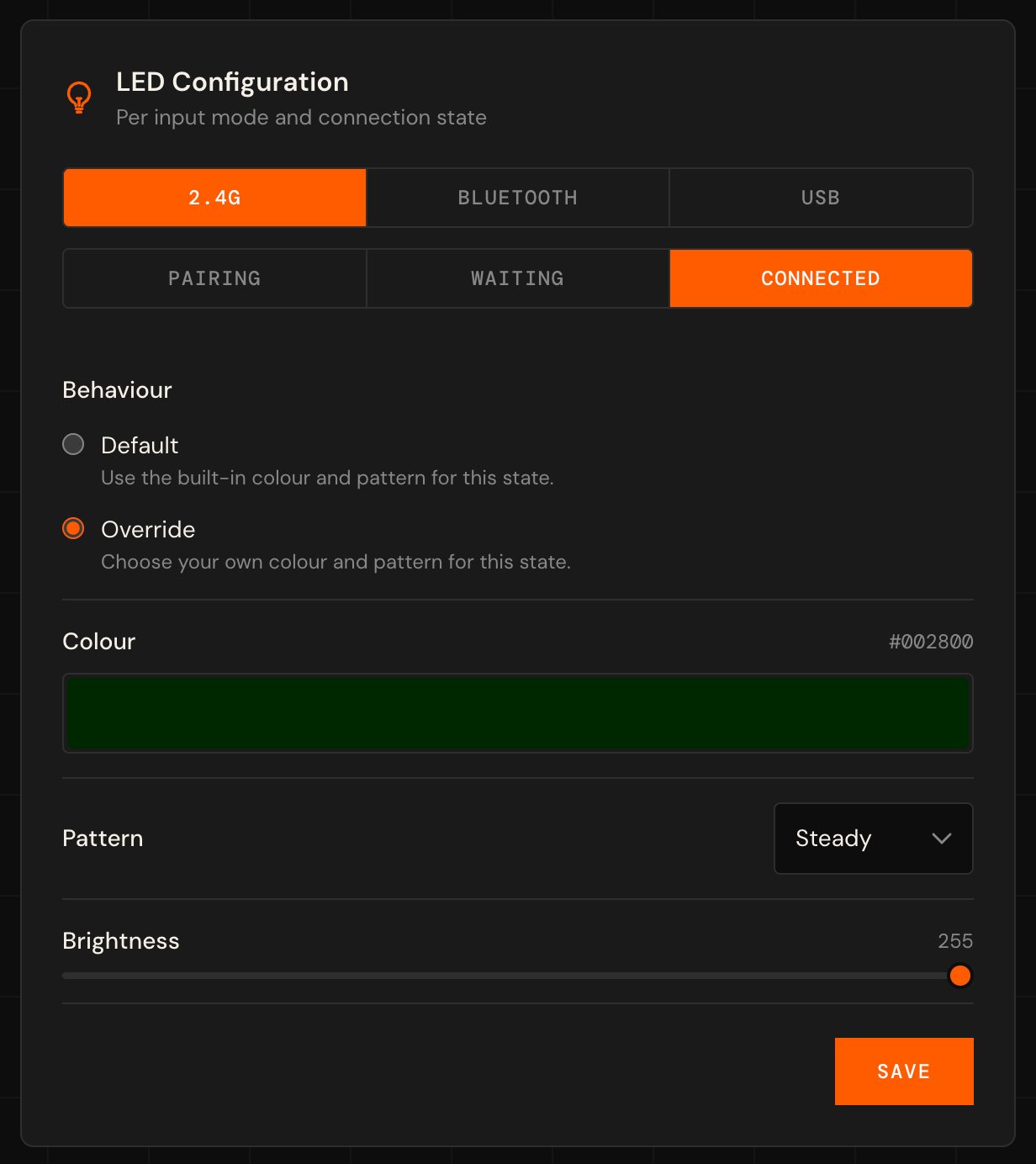

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-70179c8a7a6d53c689a7592247b8e6e0bd92eb85%2Fled-override.png?alt=media" alt="LED page, 2.4G Connected, Override with colour, pattern and brightness" width="616"><figcaption><p>Override</p></figcaption></figure>

The patterns are **Steady**, **Pulse**, **Fast Pulse**, **Swoosh**, **Breathe** and **Rainbow**. Rainbow cycles through all colours, so it ignores the colour setting.

The LED previews each change, then returns to its current state about 3 seconds after your last change.


---
