# Connecting to the WebUI

The WebUI is a web page that sets up the dongle over Bluetooth. Use Chrome or Edge on a computer or an Android phone. Safari and iPhone do not support Web Bluetooth.

1. In 2.4G or USB mode, press the dongle's button three times to turn on the WebUI Bluetooth. In Bluetooth mode it is always on.
2. Open `https://bitlink.8bitmods.shop/app/`.
3. Select **Connect** and choose **BitLink DC** from the list.
4. The badge changes to **Connected**, and **Device Info** shows the firmware version and input mode.

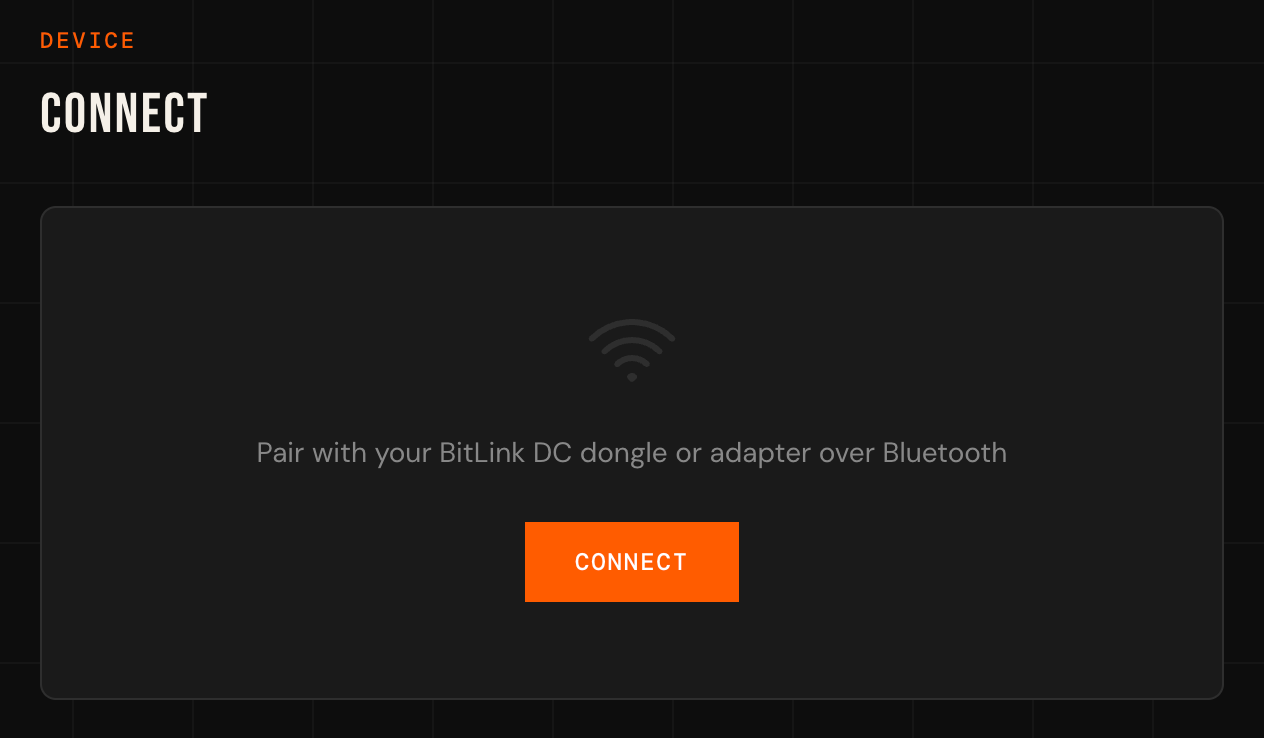

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-43f4d9d5f587645ad4684298dc962f7ff486fb5e%2Fconnect-page.png?alt=media" alt="WebUI Connect page with the Connect button" width="632"><figcaption><p>The Connect page</p></figcaption></figure>

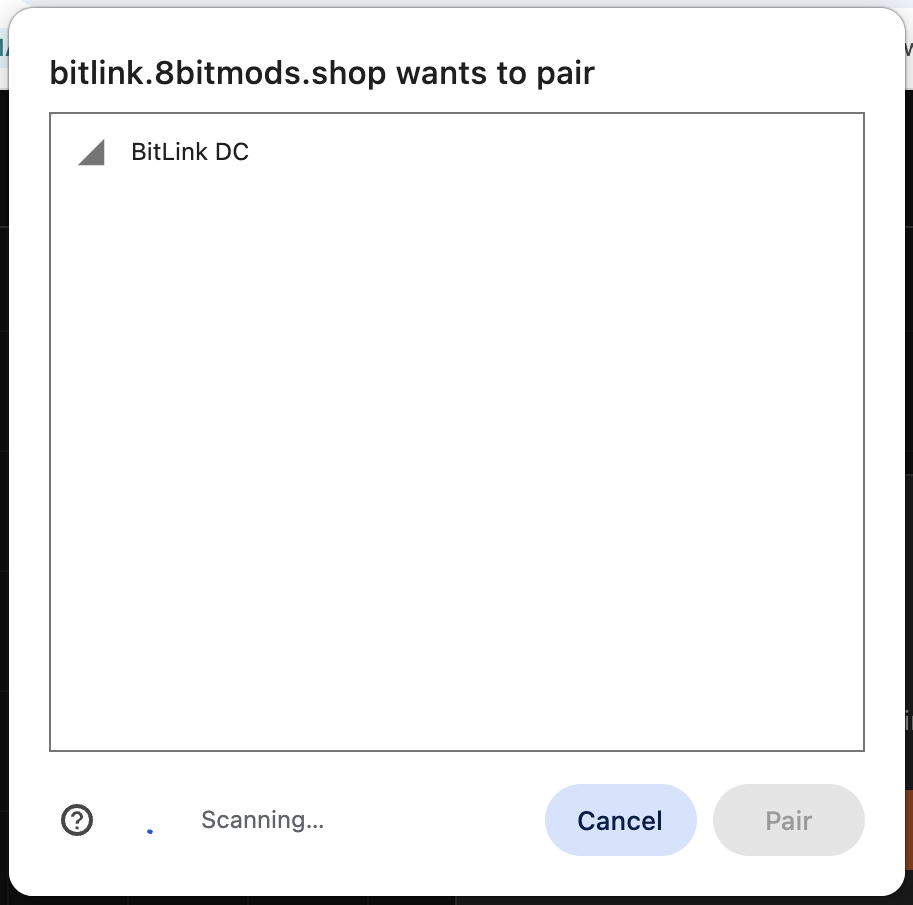

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-0ba48d534db89cd5d30a39d9837cd6f58ee02630%2Fconnect-chooser.png?alt=media" alt="Chrome Bluetooth list showing BitLink DC" width="456"><figcaption><p>Choose BitLink DC</p></figcaption></figure>

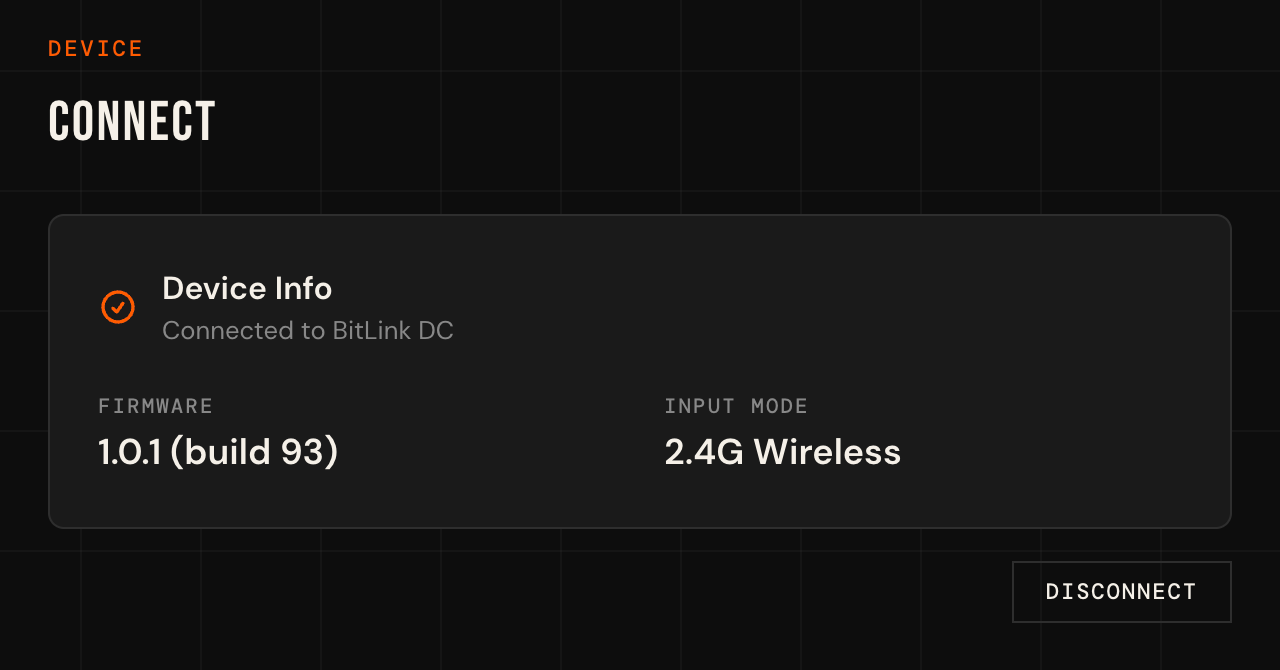

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-8ea930803dbfa451e48f98634b2952fd8c89756d%2Fconnect-device-info.png?alt=media" alt="Device Info showing firmware 1.0.1 and input mode 2.4G Wireless" width="640"><figcaption><p>Connected</p></figcaption></figure>

The **Config**, **LED**, **Mapping**, **VMU** and **Debug** pages appear once you are connected.

## Notes

* In 2.4G and USB modes the WebUI Bluetooth turns off after 5 minutes without activity. Press the button three times to turn it on again.
* Select **Disconnect** when you have finished.


---
