# Button mapping

The **Mapping** page sets which Dreamcast button each controller button presses. Each controller family has its own mapping:

| Family        | Controllers                                    |
| ------------- | ---------------------------------------------- |
| Xbox / 8BitDo | Xbox One, Series, 360, and 8BitDo controllers  |
| PlayStation   | DualSense and DualShock 4                      |
| Switch Pro    | Nintendo Switch Pro and 8BitDo in Switch mode  |
| Dreamcast     | Original controller via the BitLink DC Adapter |

Connect the controller first. Until one connects, the page shows **No controller connected** and cannot be changed. Only the connected controller's family can be edited.

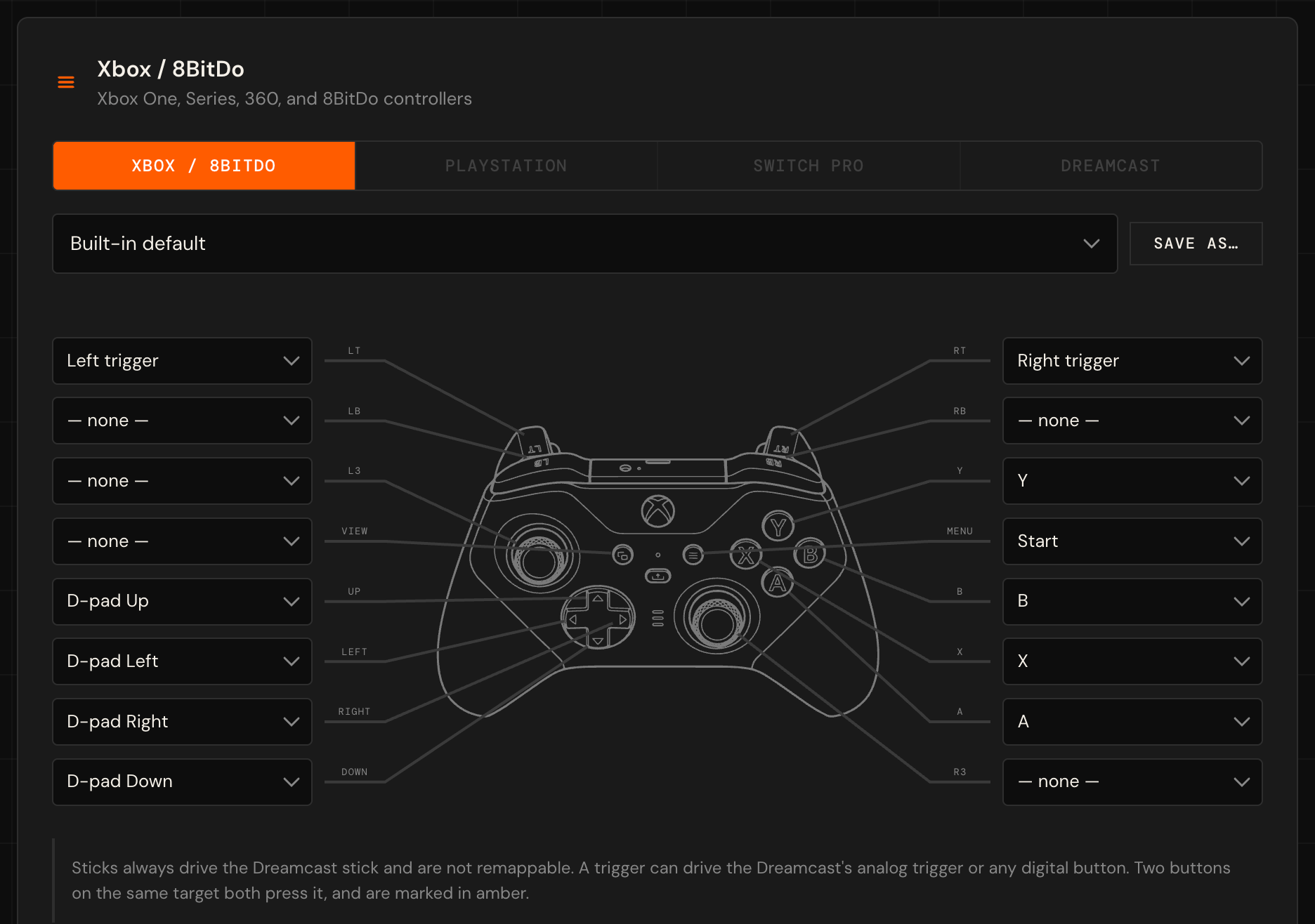

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-d610f066cc90f913c8e119f733e3ff7b17d78cb9%2Fmapping-xbox.png?alt=media" alt="Mapping page for an Xbox controller with a list next to each button" width="936"><figcaption><p>Mapping for an Xbox controller</p></figcaption></figure>

## Changing the mapping

1. Connect the controller. Its family tab is selected and the other tabs are greyed out.
2. Pick a Dreamcast button from the list next to each controller button. The change works straight away and is kept.
3. To keep this layout as a preset, select **Save as...**, enter a name and select **Save**.

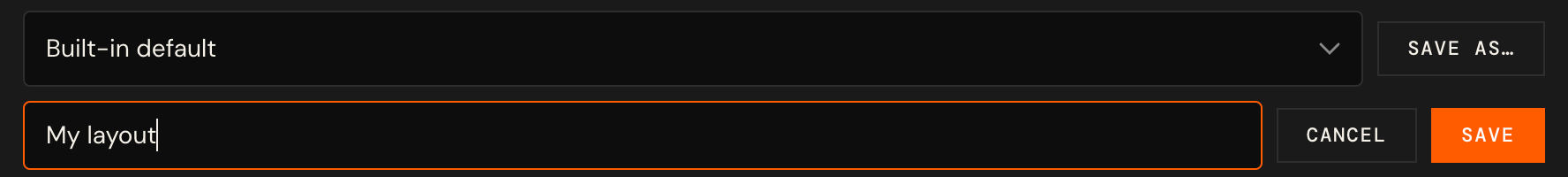

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-e039cf2cf94ead2e8a0a9a3fd932a54d18ad4993%2Fmapping-save-as.png?alt=media" alt="Preset name field with My layout entered" width="888"><figcaption><p>Saving a preset</p></figcaption></figure>

Choose a preset from the list to load it, or **Built-in default** for the standard layout. **Revert** undoes your edits and **Delete** removes the loaded preset. Each family holds up to 8 presets with names of up to 23 characters.

## Notes

* The sticks always drive the Dreamcast stick and cannot be remapped.
* A trigger can drive a Dreamcast analog trigger or any button.
* Two controller buttons set to the same Dreamcast button both press it. They are marked in amber.
* C, Z and D only exist on the Dreamcast Arcade Stick and are not assigned by default.


---
