# Updating the firmware

Dongle firmware files are named `bitlink-dongle-<version>b<build>.bin`, for example `bitlink-dongle-1.0.1b412.bin`. Adapter files do not work on the dongle.

## From the WebUI

You need Chrome or Edge on a computer, and a USB-C cable.

1. Connect to the WebUI and select **Config > System > Firmware Update > Update**.
2. Choose the firmware file and select **Restart into update mode**.
3. Connect the dongle to the computer with a USB-C cable.
4. Select **Select device and flash** and choose **BitLink Dongle DFU**.
5. Wait for **Complete**. The dongle restarts with the new firmware.

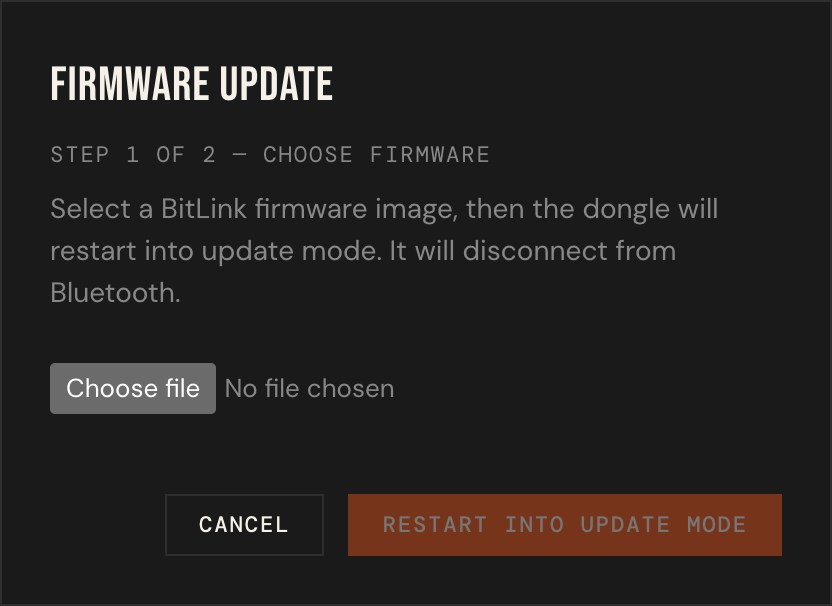

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-6a9cfc9390ccbf8bab617587635e4d87b7eb6471%2Ffirmware-step1.png?alt=media" alt="Firmware Update step 1, choose firmware" width="416"><figcaption><p>Step 2: choose the file</p></figcaption></figure>

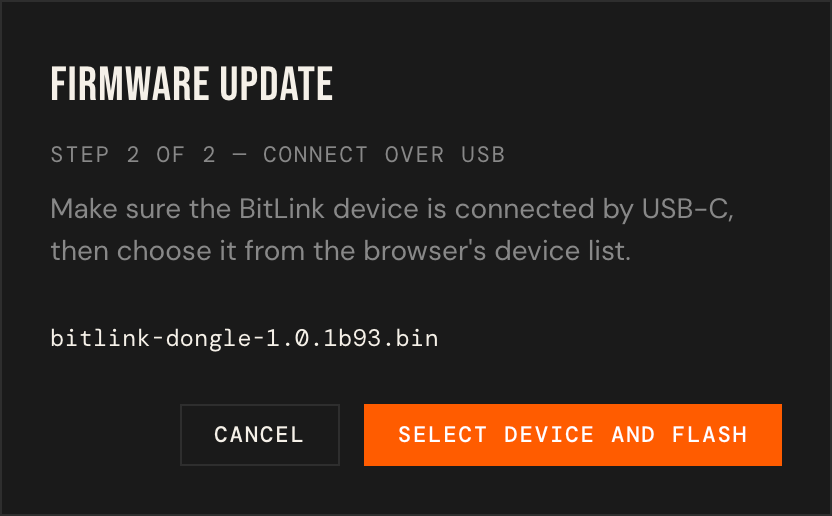

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-c32bd29a1400d9cd7b4af82482211f662cabe0c0%2Ffirmware-step2.png?alt=media" alt="Firmware Update step 2, connect over USB" width="416"><figcaption><p>Step 4: Select device and flash</p></figcaption></figure>

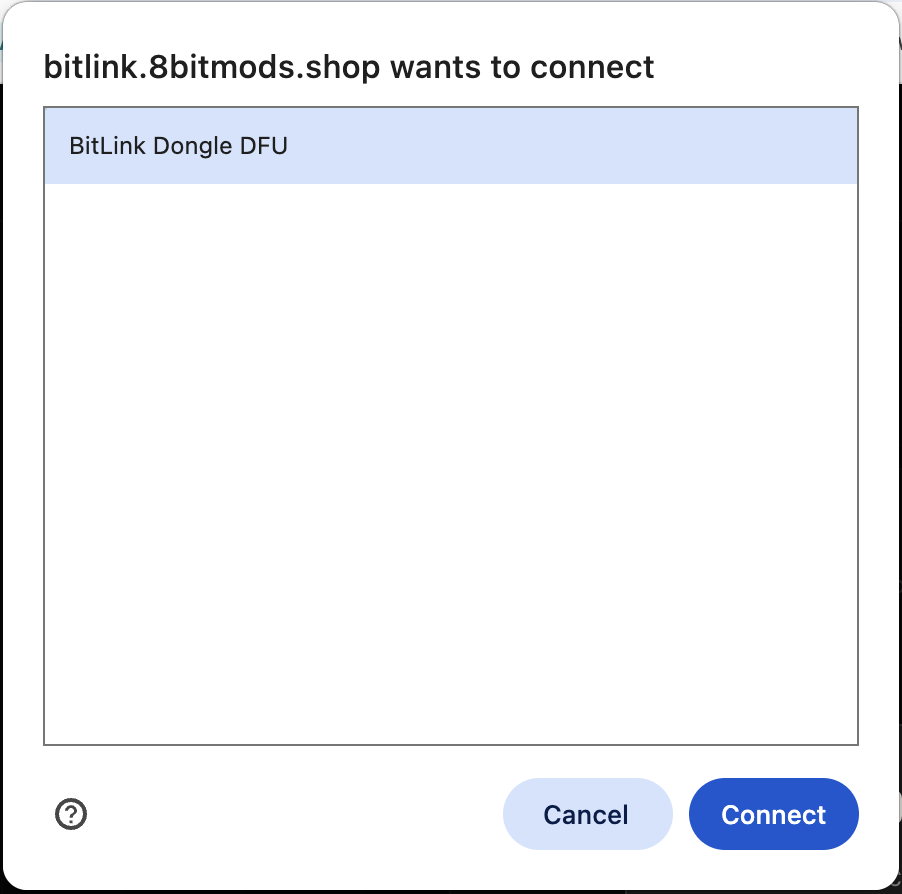

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-1310496fb12b43ec9ad86d4401b04f35c5c75c29%2Ffirmware-usb-chooser.png?alt=media" alt="Chrome USB list showing BitLink Dongle DFU" width="451"><figcaption><p>Step 4: choose BitLink Dongle DFU</p></figcaption></figure>

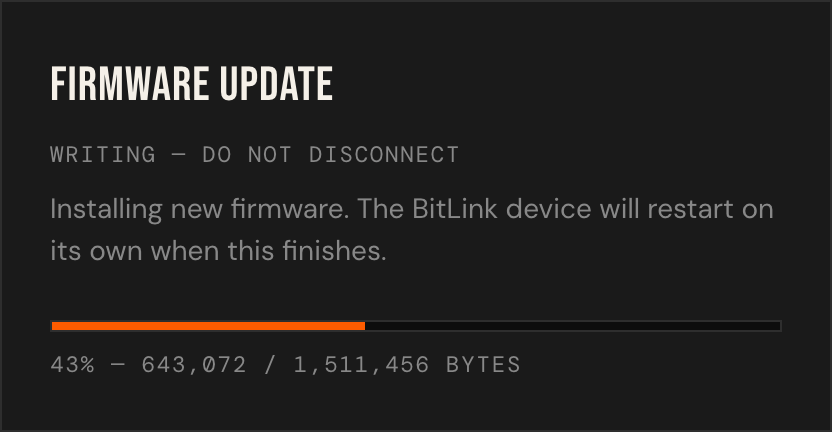

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-89eeed53d61a8fc3217a851b97700953e9f52137%2Ffirmware-writing.png?alt=media" alt="Firmware Update writing, 43 percent" width="416"><figcaption><p>Writing</p></figcaption></figure>

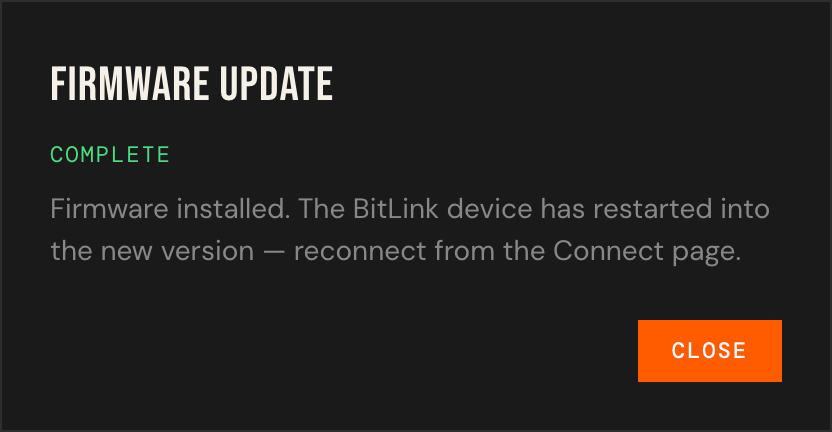

<figure><img src="https://3745350575-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxE7fgXjmB9AkNFHd2vW0%2Fuploads%2Fgit-blob-b662c48c086366240bf29932d69f0fdcdcec9ee2%2Ffirmware-complete.png?alt=media" alt="Firmware Update complete" width="416"><figcaption><p>Step 5: Complete</p></figcaption></figure>

## With dfu-util

1. Start update mode. See [Update mode and recovery](/manuals/bitlink-dc-dongle/firmware/recovery.md).
2. Run `dfu-util -a 0 -D bitlink-dongle-1.0.1b412.bin`.

{% hint style="info" %}
Do not disconnect the dongle while it is writing. If an update is interrupted, see [Update mode and recovery](/manuals/bitlink-dc-dongle/firmware/recovery.md).
{% endhint %}

No driver is needed on Windows. The current version is shown on the WebUI **Connect** page.


---
