# Connecting to the WebUI

The WebUI is a web page that sets up the adapter over Bluetooth. Use Chrome or Edge on a computer or an Android phone. Safari and iPhone do not support Web Bluetooth.

1. In 2.4G or wired mode, press the power button three times to turn on the WebUI Bluetooth. In Bluetooth gamepad mode it is always on.
2. Open `https://bitlink.8bitmods.shop/app/`.
3. Select **Connect** and choose **BitLinkPad** from the list, or **8BitMods BitLink Gamepad** in Bluetooth gamepad mode.
4. The badge changes to **Connected**, and **Device Info** shows the firmware version and link mode.

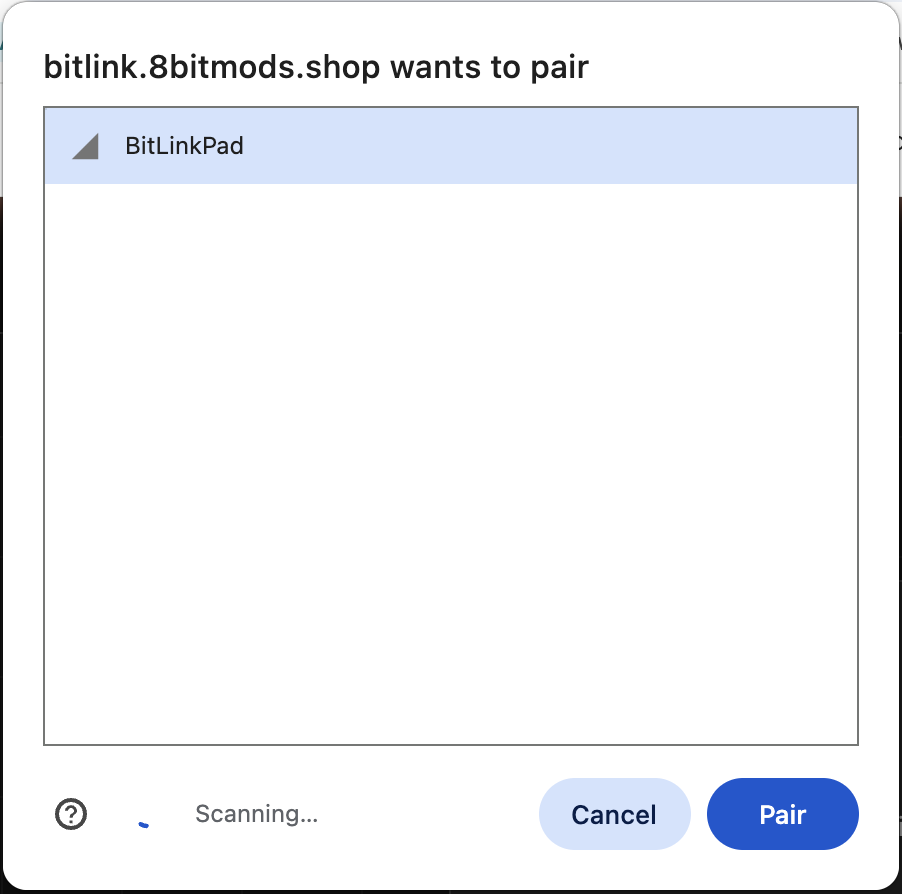

<figure><img src="https://1477031042-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrOZt2G56IoPRZNZUgGRS%2Fuploads%2Fgit-blob-f7a1418849e080ccda98cd9317532bbf377c1de5%2Fconnect-chooser.png?alt=media" alt="Chrome Bluetooth list showing BitLinkPad" width="451"><figcaption><p>Choose BitLinkPad</p></figcaption></figure>

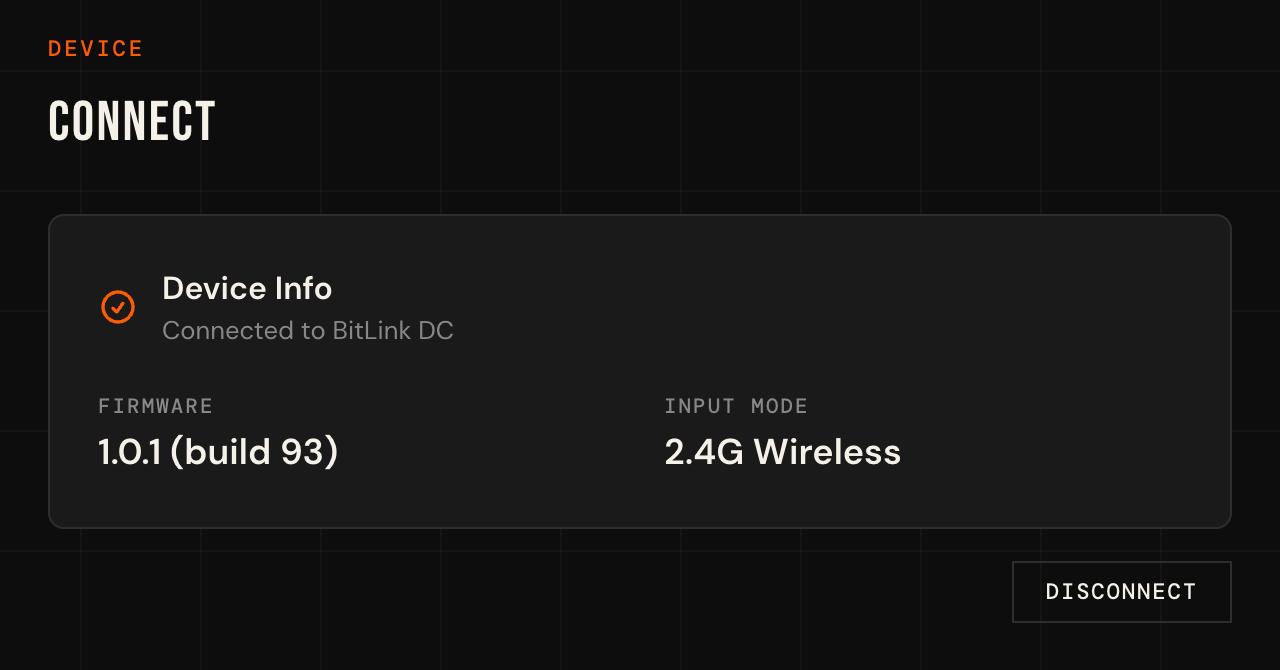

<figure><img src="https://1477031042-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrOZt2G56IoPRZNZUgGRS%2Fuploads%2Fgit-blob-8ea930803dbfa451e48f98634b2952fd8c89756d%2Fconnect-device-info.png?alt=media" alt="Device Info showing firmware 1.0.1 and input mode 2.4G Wireless" width="640"><figcaption><p>Connected</p></figcaption></figure>

For the adapter, use **Config** for the link mode and firmware updates, **LED**, and **Mapping** for Bluetooth gamepad mode. The **VMU** page, **Reboot** and **Factory Reset** are for the dongle.

## Notes

* In 2.4G and wired modes the WebUI Bluetooth turns off after 5 minutes without activity. Press the power button three times to turn it on again.
* Settings for 2.4G and wired play, such as button mapping and combos, are on the dongle. Connect to the dongle's WebUI for those.


---
