# Bluetooth gamepad mapping

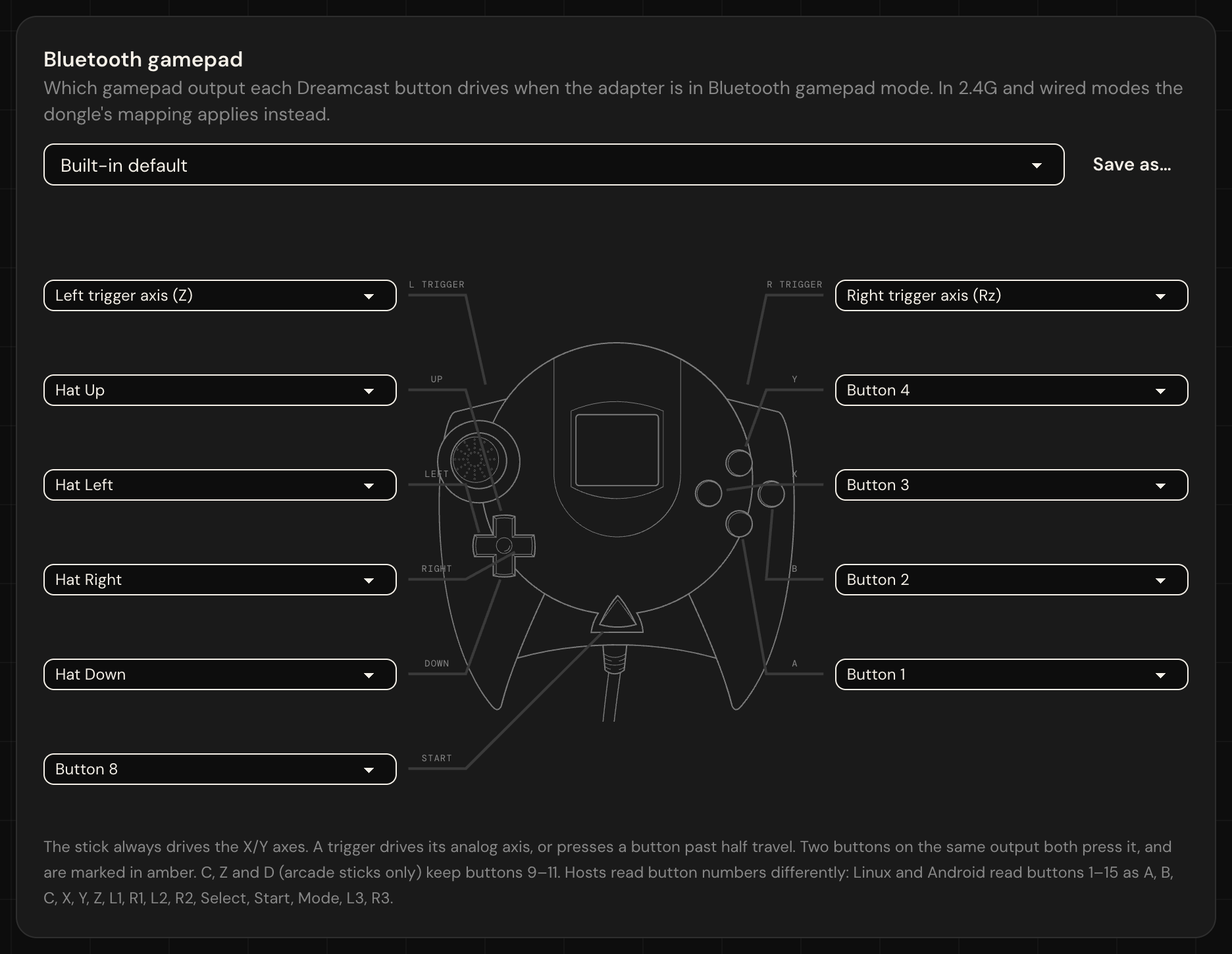

On the adapter, the **Mapping** page sets which gamepad output each Dreamcast button drives in Bluetooth gamepad mode. In 2.4G and wired modes the dongle's mapping is used instead.
The built-in default
1. Pick an output from the list next to each Dreamcast button: gamepad buttons 1 to 16, or a D-pad direction. The change works straight away and is kept.
2. To keep this layout as a preset, select **Save as...**, enter a name of up to 23 characters and select **Save**.
Choose a preset from the list to load it, or **Built-in default** for the standard layout. **Revert** undoes your edits and **Delete** removes the loaded preset. The adapter holds up to 8 presets.
## Built-in default
| Dreamcast | Gamepad output |
| ------------ | ------------------ |
| A, B, X, Y | Buttons 1, 2, 3, 4 |
| Start | Button 8 |
| D-pad | D-pad (hat) |
| L trigger | Z axis |
| R trigger | Rz axis |
| Analog stick | X and Y axes |
## Notes
* The analog stick always drives the X and Y axes.
* A trigger drives an analog axis, or a button that presses past half travel.
* Two Dreamcast buttons set to the same output both press it. They are marked in amber.
* C, Z and D (Arcade Stick only) use buttons 9 to 11.
* Computers number buttons differently. Linux and Android read buttons 1 to 15 as A, B, C, X, Y, Z, L1, R1, L2, R2, Select, Start, Mode, L3, R3.
---
