# Link modes

The adapter uses one link mode at a time and remembers it when switched off.

| Mode              | LEDs  | Connects to                                           |
| ----------------- | ----- | ----------------------------------------------------- |
| 2.4G              | Green | The BitLink DC Dongle in 2.4G mode, wirelessly        |
| Wired             | White | The BitLink DC Dongle in USB mode, with a USB-C cable |
| Bluetooth gamepad | Blue  | A computer or phone, as a Bluetooth gamepad           |

## Changing the mode

* Hold the Sync button for 3 seconds and release before 5 seconds. Each hold moves to the next mode: 2.4G, wired, Bluetooth gamepad.
* Hold **L + R + Start** for 3 seconds to switch between 2.4G and Bluetooth gamepad mode.

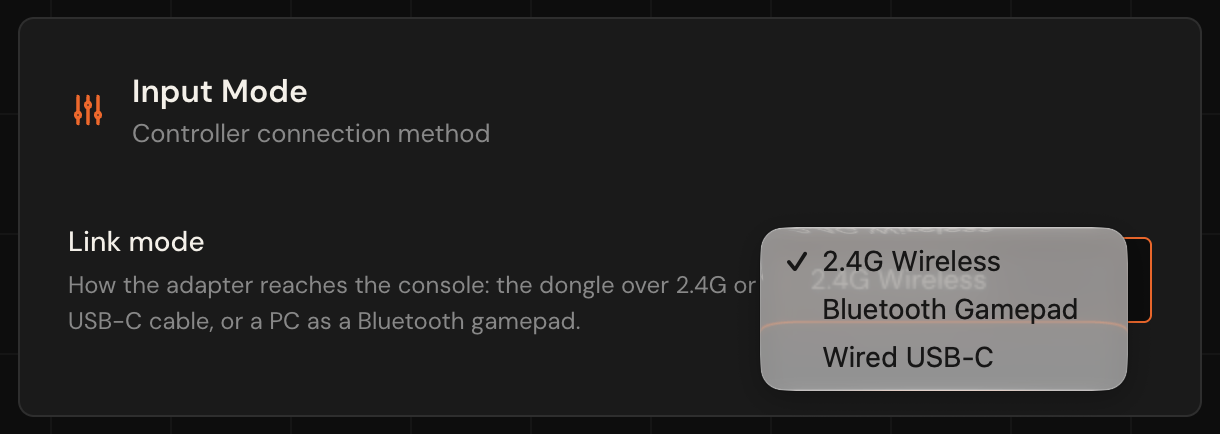

* Or select a mode under **Config > Input Mode** in the WebUI.

<figure><img src="https://1477031042-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrOZt2G56IoPRZNZUgGRS%2Fuploads%2Fgit-blob-6dfc5b7f849d70466819a6ff179d3ab1017b04d8%2Fconfig-input-mode.png?alt=media" alt="Link mode list with 2.4G Wireless, Bluetooth Gamepad and Wired USB-C" width="610"><figcaption><p>Config > Input Mode</p></figcaption></figure>

## Wired mode

1. Set the dongle to USB mode. Its LED is white.
2. Connect the adapter's USB-C port to the dongle's USB-C port.

Everything works as in 2.4G mode, and the adapter charges slowly from the dongle.


---
